Advantages of Star Delta Connection The primary side is star connected. Hence fewer numbers of turns are required. This makes the connection economical for large high voltage step down power transformers. The neutral available on the primary can be earthed to avoid distortion.
Why do most 3 phase transformer connections have at least one side connected in Delta?
It is, therefore, always preferrable to have at least one delta connected winding in a three phase transformer, which will eliminate the third harmonic current in the external circuit and thus will avoid the interference of power lines with the communication networks.
How does the tertiary winding remove the third harmonic?
Can you explain with a diagram? The tertiary windings of a power transformer do not directly remove 3rd harmonics. Rather, they allow the magneto motive force (MMF) acting on the magnetic flux in the iron core to balance around each closed core path.
What is the advantage of delta connection of three single phase transformers?

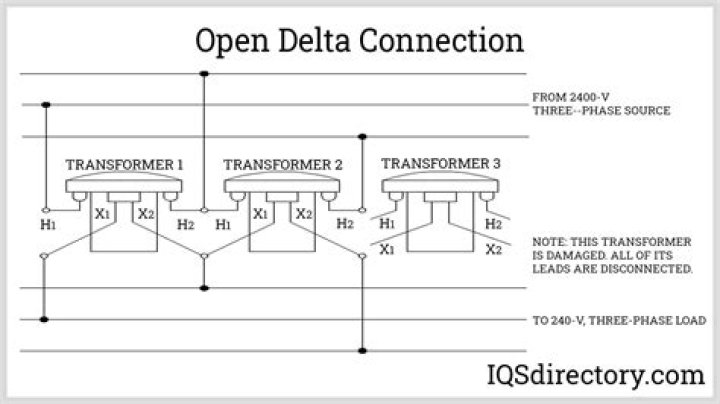

Delta-Wye: Commonly used in a step-up transformer for the same reasons as above. Delta-Delta: Offers the advantage that one of the transformers can be removed while the remaining two transformers can deliver three-phase power at 58% of the original bank.
What is the difference between star and delta transformer?
In Star connection, the line voltage is equal to root three times of the phase voltage, whereas in delta connection line voltage is equal to the phase voltage. In star connection, phase voltage is low as 1/√3 times the line voltage, whereas in delta connection phase voltage is equal to the line voltage.
Why Delta Connection has no neutral?
Why there is no neutral wire in delta connection? – Quora. in the case of the unbalance. in the Y connection if there were unbalance in the load on the phases there will be a return current in the neutral line .
How do you calculate current in Delta Connection?
Transformer Delta and Delta Connections In a delta connected ( Dd ) group of transformers, the line voltage, VL is equal to the supply voltage, VL = VS. But the current in each phase winding is given as: 1/√3 × IL of the line current, where IL is the line current.
What is the difference between a wye connected and delta connected transformer?
In a delta system configuration, the phase voltage is equal to the line voltage, while in a wye system, the phase load or single-phase loads is seen to pass-through all wires. A delta system is connected in a triangular shape configuration, while a wye system is connected in a “Y” shape, or configured in a star shape.
What is 3rd 5th and 7th harmonics?
Harmonics are voltages or currents that operate at a frequency that is an integer (whole-number) multiple of the fundamental frequency. So given a 50Hz fundamental waveform, this means a 2nd harmonic frequency would be 100Hz (2 x 50Hz), a 3rd harmonic would be 150Hz (3 x 50Hz), a 5th at 250Hz, a 7th at 350Hz and so on.
Why 3rd harmonics are dangerous?
The third harmonic causes a sharp increase in the current in the neutral conductor. Harmonics cause malfunctioning of electronic parts, transformer heating, and malfunctioning of power factor correction capacitors.
What are the advantages of ∆ ∆ connection?
The advantage of ∆ – ∆ Transformation: The main advantage of ∆ – ∆ transformer is that if one transformer stops working, then the other two transformers will keep on working. This is called an open delta connection.
Which connection is better Star or Delta?
Delta Connection is generally used in distribution networks. Since insulation required is less, Star Connection can be used for long distances. Delta Connections are used for shorter distances. Delta Connections are often used in applications which require high starting torque.
Why do you need tertiary winding in Delta Connection?
A tertiary winding in Delta connection will provide stability to the main windings. A Three Phase Transfotmer with Delta-Delta connected windings does not have internal neutral point and no Neutral Terminal but the voltage between phases will be very stable.
Why is delta connected windings are used in induction?
Delta Winding. The voltage applied across each winding will be equal to the line voltage. Used for high starting torque voltages. Normally LT motors operating on 415 V are connected in Delta as there is not much saving in insulation as the voltage difference between Star and Delta connections is only 165 V.
What is the role of delta winding in a transformer?
This circulating current in this delta winding balances the zero sequence component of unbalance load, hence prevents unnecessary development of unbalance zero sequence flux in the transformer core.
This circulating current in this delta winding balances the zero sequence component of unbalance load, hence prevents unnecessary development of unbalance zero sequence flux in the transformer core.
Which is the schematic diagram for the Delta Connection?
The schematic diagram at the upper right is perhaps easier to analyze, as the delta connections can clearly be seen. The phasor diagram at the lower right shows the geometric relationships between the high voltage circuit and low voltage circuit currents, and the equations at the bottom center show those relationships mathematically.
Which is the positive sequence in a wye delta transformer?
In a standard delta–wye (or wye–delta) transformer, the positive-sequence currents and voltages on the high voltage side lead the positive-sequence currents and voltages on the low voltage side by 30°.
