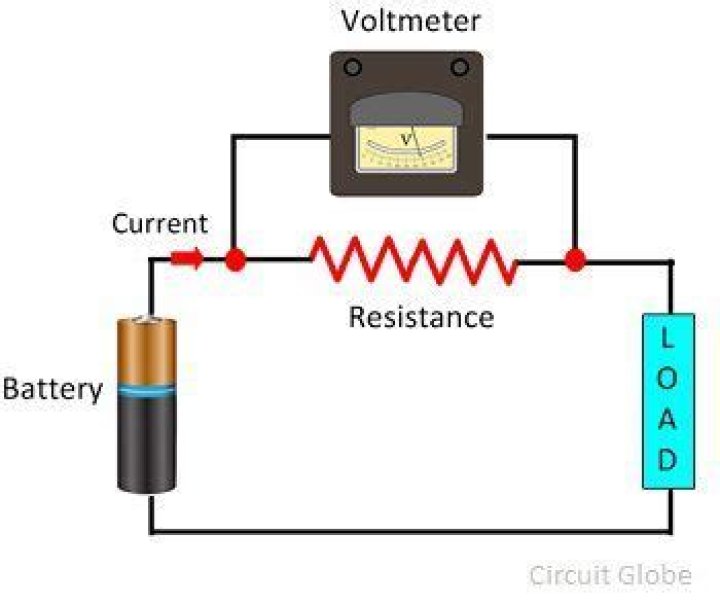

Voltmeter is connected in parallel with circuit elements because it is used to measure the device’s voltage. If it’s connected in series then it will change the value of potential difference which will minimise the current in the circuit as it has very large resistance and you will get faulty readings.
Why voltmeter is connected in parallel with the load resistance?
Voltmeter has very high resistance to ensure that it’s connection do not alter flow of current in the circuit. Now if it is connected in series then no current will be there in the circuit due to it’s high resistance. Hence it is connected in parallel to the load across which potential difference is to be measured.
Why voltmeter is connected in parallel Quora?
A voltmeter must be connected in parallel to measure the voltage of a device because objects in parallel experience the same potential difference. A voltmeter is used to measure the electrical potential difference between two locations in an electrical circuit.
What happens if voltmeter is connected in parallel?
A voltmeter is used to measure potential difference across two points in an electrical circuit. When ammeter is connected in parallel to the circuit, net resistance of the circuit decreases. Hence more current is drawn from the battery, which damages the ammeter.
Why is an ammeter connected in parallel?
An ammeter is a device which measures the amount of current flowing in a circuit. It is a very low resistance(nearly zero) device. If it will be connected in parallel, it would draw most of the current and would get damaged. Hence, it is connected in parallel.
What happens if ammeter is connected in parallel?
Ammeter aims at measuring the current flowing through the circuit and hence, it is connected in series. When ammeter is connected in parallel to the circuit, net resistance of the circuit decreases. Hence more current is drawn from the battery, which damages the ammeter.
Why is voltmeter a high resistance device?
A voltmeter measures the difference in voltage between the two different points (say, on opposite sides of a resistor), but it does not adjust the amount of current passing between these two points through the device. It will therefore have very high resistance, so that it does not draw current through it.
What if ammeter is connected in parallel?
If we connect an ammeter in parallel there will be higher flow of current through the ammeter, it would cause a short circuit, resulting in damaging the ammeter and the circuit. Answer: Ammeter is connected in series always. Ammeter has a very low resistance.
Why ammeter should not be connected in parallel?
An ammeter is connected in series with the circuit because the purpose of the ammeter is to measure the current through the circuit. Since the ammeter is a low impedance device, connecting it in parallel with the circuit would cause a short circuit, damaging the ammeter and/or the circuit.
Why is an ammeter likely to burn if connected in parallel?
As the resistance of the ammeter is very very small, thus a large amount of current flows through it when it is connected in parallel and hence it burns out.
What will happen if the position of ammeter and voltmeter are interchanged?
Voltmeter is always connected in parallel with the the circuit. Ammeter is always connected in series with the circuit. If the positions of these two are interchanged, the ammeter will be destroyed by high amount of current given that it is of low resistance.
Does ammeter have high resistance?
1 ) Resistance of an ammeter is low. As ammeter is connected in series in the circuit, effective resistance is the sum of resistance of the circuit and the resistance of ammeter. Thus small resistance of ammeter would not effect the current in the circuit. 2) Resistance of Voltmeter is High.
Why is a voltmeter connected in parallel to a circuit?
If you measure voltage across two ends of a component or a branch in a circuit, you are automatically connecting it in parallel to it. Voltage is the same in parallel. If two components are connected to the same two points, they will have the same potential across them.
Why does voltage remain the same over a circuit?
Charge is a conserved quantity. What you perceive as heat is the energy of the particles 1 flowing at the drift speed (around a few millimeters per second). It’s simply the voltage that’s converted to heat. The free electrons can’t smell around and divide accordingly based on resistance on each path of the circuit. It’s just a random flow.
How is heat calculated in a parallel circuit?
Heat from each resistor in a parallel circuit will be calculated as the product of the voltage (the same for each) and current (different and inversely proportional to the resistances.) You should think of voltage as pressure and the charge as the fluid being pushed forward.
Why do parallel circuits violate Kirchoff’s voltage law?
Thus in a parallel circuit if the voltages are not equal, changing the loops will violate this principle. The answer comes from Energy Conservation Principle which commonly is known as Kirchoff’s Voltage Law. Voltage is basically work done per unit charge and work is form of energy which has to be conserved.
